SolidWorks Models

40GP PW  [DD]
ISO Shipping Container drawings.

These ISO Shipping container drawings are in the SolidWorks format and each model contains 37 of the .sldasm and .sldprt SolidWorks files and the EASM file which allows for complete assembly.

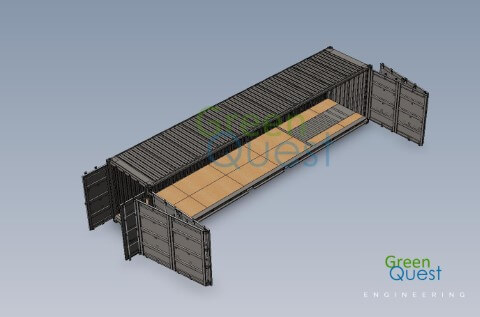

Each SolidWorks shipping container model also has the ability to create closed-door, and open-door views of each Swall and Vwall corrugation model, without buying separate files or models. (see below)

SolidWorks Files Included:  Each model contains approximately 37 .sldasm, and .sldprt files, plus the EASM file in Pack & Go.

Also included are the ASTM engineering references and specifications files for Finite Elemental Analysis (FEA) documentation.

Additionally, we also offer: ProE/Creo, SketchUp, 3D CAD, 3D-PDF, and 2D CAD models.


STD (Standart container / DD (Double end doors / OS (Open side doors) / PW (Pallet Wide) / RF (Refrigerated)
