This section contains the SolidWorks format of our ISO Shipping Container drawings.
Our shipping container technical drawings have been created for engineering and architectural purposes. For the past 15 years, our drawings have been widely used globally by architects, engineers, container dealers, building contractors, military, global governmental agencies, city building permiting departments, emergency agencies, agriculture, housing developers, expo designers, graphic designers, video game developers, container modifiers, the shipping container home industry, and many other groups.
Types Of SolidWorks Drawings And Categories-
- Wall Corrugations:
Most drawings are available in both, Vee corrugation walls, and square.
- Door Types: One-Door, Double-Doors, and, Open-sides
Most standard shipping containers are considered "One-Door", with the door opening at only one end of the container module.
We also offer many models with "Double-Door" types, meaning the container model opens at both ends of the shpping container.
The third type is "Open-Sides", which opens in one-end as normal, but also has doors that open on one side. Access at one-end, and access on one-side.
- CAD Drawings: Other formats are also available- 2D, 3D, ProE/Creo, SketchUp, etc.
On all shipping container drawings we offer 2D CAD files (3 types), 3D CAD files (12 popular types), ProE/Creo files, SketchUp files (2 types), PDF 3D files, and also Photoshop overlay graphic files.

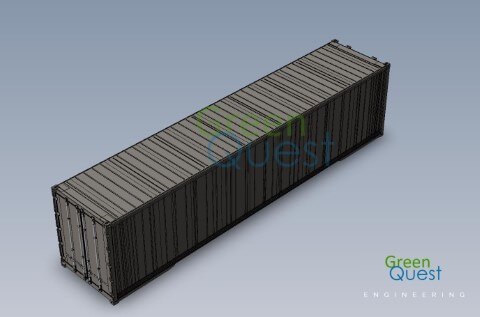

"Standard" ISO shipping container models with the doors opening at one-end.

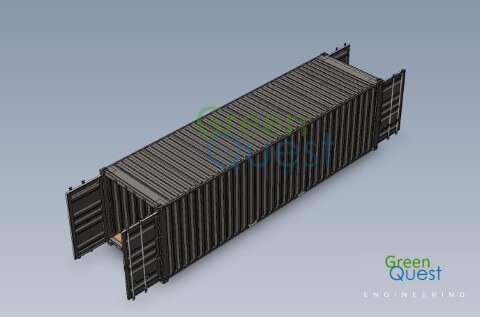

"DD" ISO shipping container models with the doors opening at both-ends.
"OS" ISO shipping container models with the doors opening at one end and on one side.
Below are all models of ISO Shipping Container engineering drawings: SolidWorks Format
